40/45 L/S Xbc Type Diesed Engine Fire Pump

RELATED PRODUCTS

亿万28:5L/S Series 亿万28:10L/S Series 亿万28:15L/S Series 20L/S Series 25L/S Series 30L/S Series
35L/S Series亿万28:40/45 L/S Series 50/55 L/S Series 亿万28:60/65 L/S Series 70/80 L/S Series

I Performance Data

Type Capacity
(L/S)		 Pd
Pressure
(MPa) 		P
Motor Power
KW		 n
Speed
(r/min) 		Efficiency
(%)		 (NPSH)r
(m)
XBC5.3/40-100 40 0.53 34.3 1500 66 2.0
XBC8.8/40-100 40 0.88 58.8 1500 66 2.0
XBC12.0/40-100 40 1.20 73.5 1500 66 2.0
XBC5.2/45-100 45 0.52 34.3 1500 70 2.5
XBC8.5/45-100 45 0.85 58.8 1500 70 2.5
XBC11.8/45-100 45 1.18 88.3 1500 70 2.5

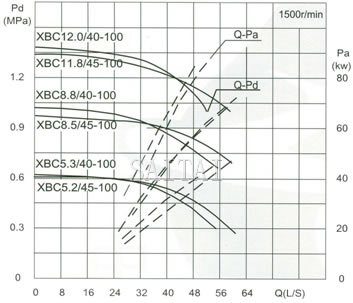

Capacity Drawing
Capacity:40/45 L/S Pressure:0.53-1.18MPa

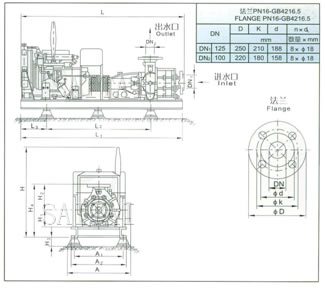

Structure Of 40/45 L/S Xbc Type Diesed Engine Fire Pump
Structure Of 40/45 L/S Xbc Type Diesed Engine Fire Pump

II 40/45 L/S Xbc Type Diesed Engine Fire Pump Mounting Dimensions

Type H1 H2 H3 H4 H L L1 L2 L3 A1 A2 A Vibration Isolator Weight
(KG)
Type NO.
XBC5.3/40-100 280 400 133 800 920 1833 1705 1055 300 445 505 - JGD4 4 613
XBC8.8/40-100 280 400 133 800 1205 2661 1870 1220 300 694 800 777 JGD4 4 1187
XBC12.0/40-100 280 400 133 800 1205 2791 2000 1350 300 694 800 777 JGD4 4 1261
XBC5.2/45-100 280 400 133 800 920 1833 1705 1055 300 445 505 - JGD4 4 613
XBC8.5/45-100 280 400 133 800 1205 2661 1870 1220 300 694 800 777 JGD4 4 1187
XBC11.8/45-100 280 400 133 800 1355 2556 2420 1770 300 694 800 795 JGD4 4 1551
