Split Case Pumps

亿万28:Brief introduction 亿万28:Sectional View / Performance Range Performance Table

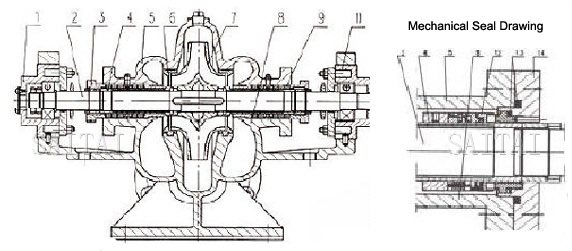

A. Split Case Pumps Sectional View:

Split Case Pumps Sectional View

1, Bearing Housing 2, Shaft 3,Packing Gland 4,Shaft Sleeve 5,Upper Casing 6,Wearing Ring 7,Impeller 8, Lower Casing
9, Packing 10,Bearing Housing A 11,Coupler 12, Mechanical Seal 13,"O"Ring 14, Mechanical Seal Gland

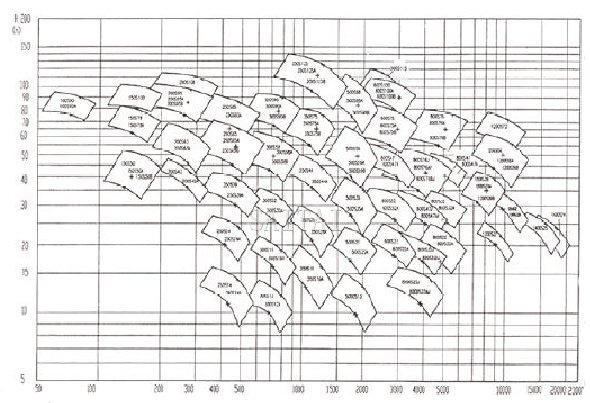

B. Split Case Pumps Performance Range:

Split Case Pumps Performance Range

Split Case Pumps Related Products
